Eaton Tripp Lite Series SmartOnline Maintenance Bypass for Select 5kVA to 6kVA SmartOnline UPS Systems

Compatible with Select 5kVA/6kVA SmartOnline UPS Systems

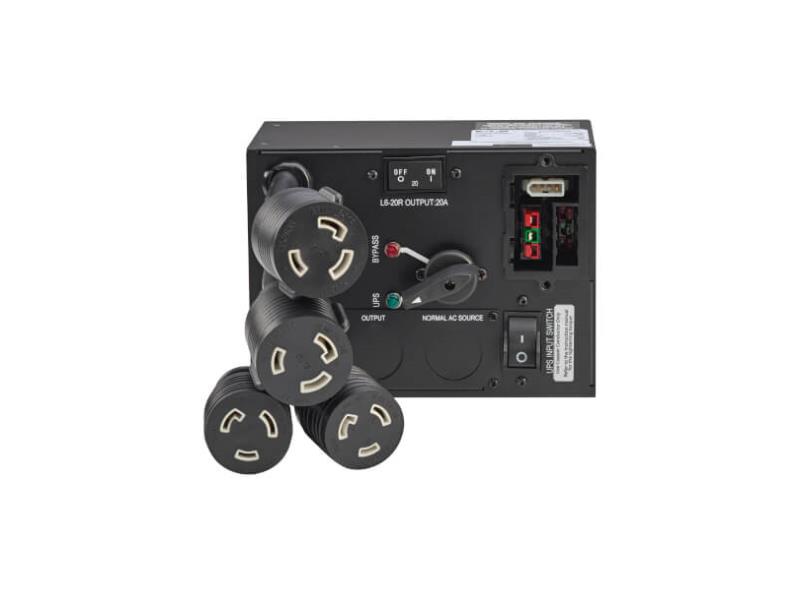

The SUPDMBP6K works with the SmartOnline SU5000RT, SU5000RTF, SU6000RT and SU6000RTF UPS systems (it comes included with the SU5000RTMB, SU6000RTMB, SU5000RTFMB and SU6000RTFMB). The bypass switch transfers the load to utility power in case of an overload or internal fault in the UPS. This allows you to service or replace the UPS without powering down any connected equipment or risking costly downtime. Two NEMA L6-20R and two NEMA L6-30R dongle outlets allow load connection. The SUPDMBP6K supports 0U mounting to save space and increase airflow in a crowded rack enclosure. AC input connection options include a terminal block for hardwire input/output or use of a NEMA L6-30P cord (10-foot cord included with compatible UPS models).

• Primary Information

  Product Description:	Eaton Tripp Lite Series SmartOnline Maintenance Bypass for Select 5kVA to 6kVA SmartOnline UPS Systems, 2 L6-30R and 2 L6-20R Outlets, 0U – bypass switch – 6000 VA
  Device Type:	Bypass switch – rack-mountable / external
  Rack Size:	0U
  Weight:	5.51 lbs
  Input Voltage:	AC 200/208/220/230/240 V
  Output Voltage:	AC 200/208/220/230/240 V
  Power Capacity:	6000 VA
  Input Connectors:	1 x hardwire
  Output connectors:	2 x power NEMA L6-30R ¦ 2 x power NEMA L6-20R
  Included Accessories:	2 cable glands, mounting hardware
  Dimensions (WxDxH):	5.6 in x 7 in x 5.1 in
  Manufacturer Warranty:	2-year warranty
  Designed For:	P/N: SU5000RT, SU5000RTF, SU6000RT, SU6000RTF

• General

  Device Type:	Bypass switch – rack-mountable / external
  Height (Rack Units):	0U

• Power Device

  UPS Technology:	On-line
  Input Voltage:	AC 200/208/220/230/240 V
  Frequency Provided:	50/60 Hz
  Input Connectors:	1 x hardwire
  Power Output Connectors Details:	2 x power NEMA L6-30R ¦ 2 x power NEMA L6-20R
  Output Voltage:	AC 200/208/220/230/240 V 50/60 Hz
  Max Electric Current:	25 A
  Power Capacity:	6000 VA
  Circuit Protection:	Circuit breaker

• Miscellaneous

  Included Accessories:	2 cable glands, mounting hardware
  Cables Included:	Input/output UPS cable set
  Features:	Metal housing, built-in bypass switch, LED indicators
  Compliant Standards:	CSA, UL 1778, RoHS

• Manufacturer Warranty

  Service & Support:

  Limited warranty – 2 years

• Environmental Parameters

  Min Operating Temperature:	32 °F
  Max Operating Temperature:	104 °F
  Humidity Range Operating:	0 – 95% RH (non-condensing)

• Dimensions & Weight

  Width:	5.6 in
  Depth:	7 in
  Height:	5.1 in
  Weight:	5.51 lbs

• Compatibility Information

  Designed For:

  P/N: SU5000RT, SU5000RTF, SU6000RT, SU6000RTF

• Special Feature

  COO:	TAIWAN
  TAA compliance:	Yes

• UNSPSC Code

  UNSPSC Code:

  39121000
