- AMD Ryzen 5 PRO 8540U (6C/12T, 3.2/4.9GHz, 6MB L2/16MB L3)
- 14" WUXGA (1920x1200) IPS 400nits 45% NTSC 60Hz DBEF5 Touch
- 1x 16GB SO-DIMM DDR5-5600
- 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
- AMD Radeon 740M Graphics
- Windows 11 Pro

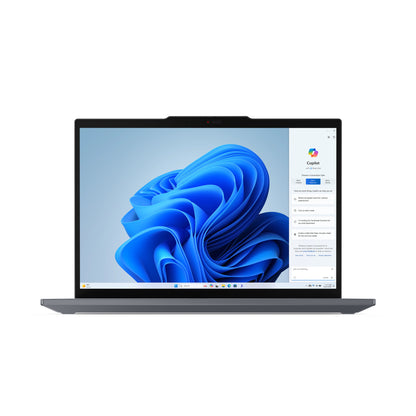

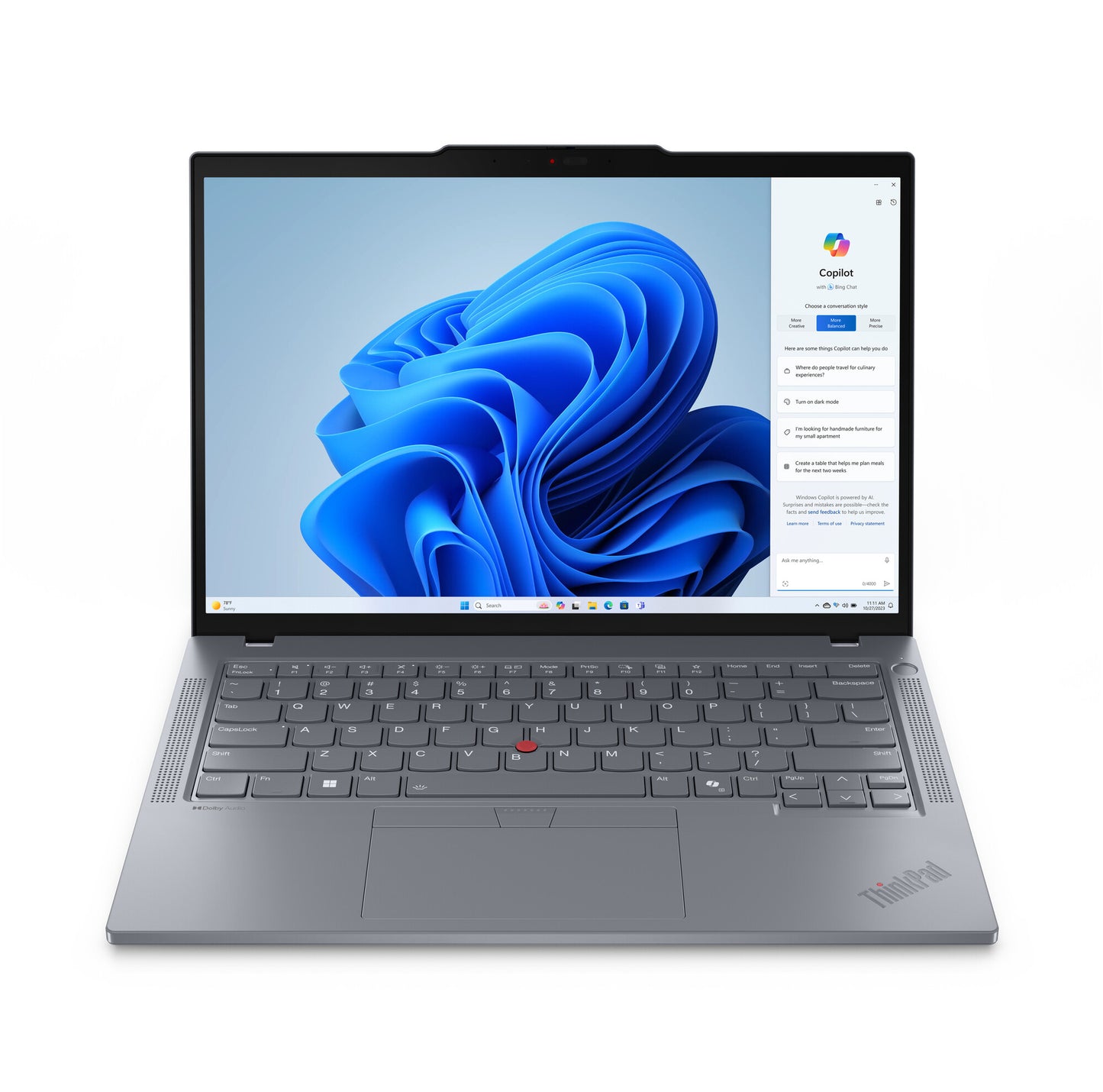

AMD Ryzen 5 PRO 8540U (6C/12T, 3.2/4.9GHz, 6MB L2/16MB L3), 1x 16GB SO-DIMM DDR5-5600, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, 14" WUXGA (1920x1200) IPS 400nits 45% NTSC 60Hz DBEF5 Touch, AMD Radeon 740M Graphics, Qualcomm Wi-Fi 6E NFA725A 802.11ax 2x2 + BT5.3, 5.0MP + IR Discrete with Privacy Shutter, Windows 11 Pro
Unprecedented Productivity Anywhere, Everywhere
Explore amazing computing and power efficiency on the go with the 14″ ThinkPad T14 Gen 5 laptop, fueled by the AMD Ryzen™ PRO processor. Energize your creative work with vivid AMD Radeon™ graphics. Plus, enjoy AI-powered collaboration features like voice focus and automatic framing to boost your productivity and elevate your remote work experience.
A Display That Brightens Your Workday
Bask in the pristine clarity of visuals on the T14 Gen 5 laptop with the 2.8K OLED display option and the 3M optical solutions boost brightness with power-saving luminance. A number of displays feature the choice of low blue-light-certification to prevent eye fatigue and strain. Plus, choose from elegant shades of Eclipse Black and Luna Grey.
More Confidence & Better Control

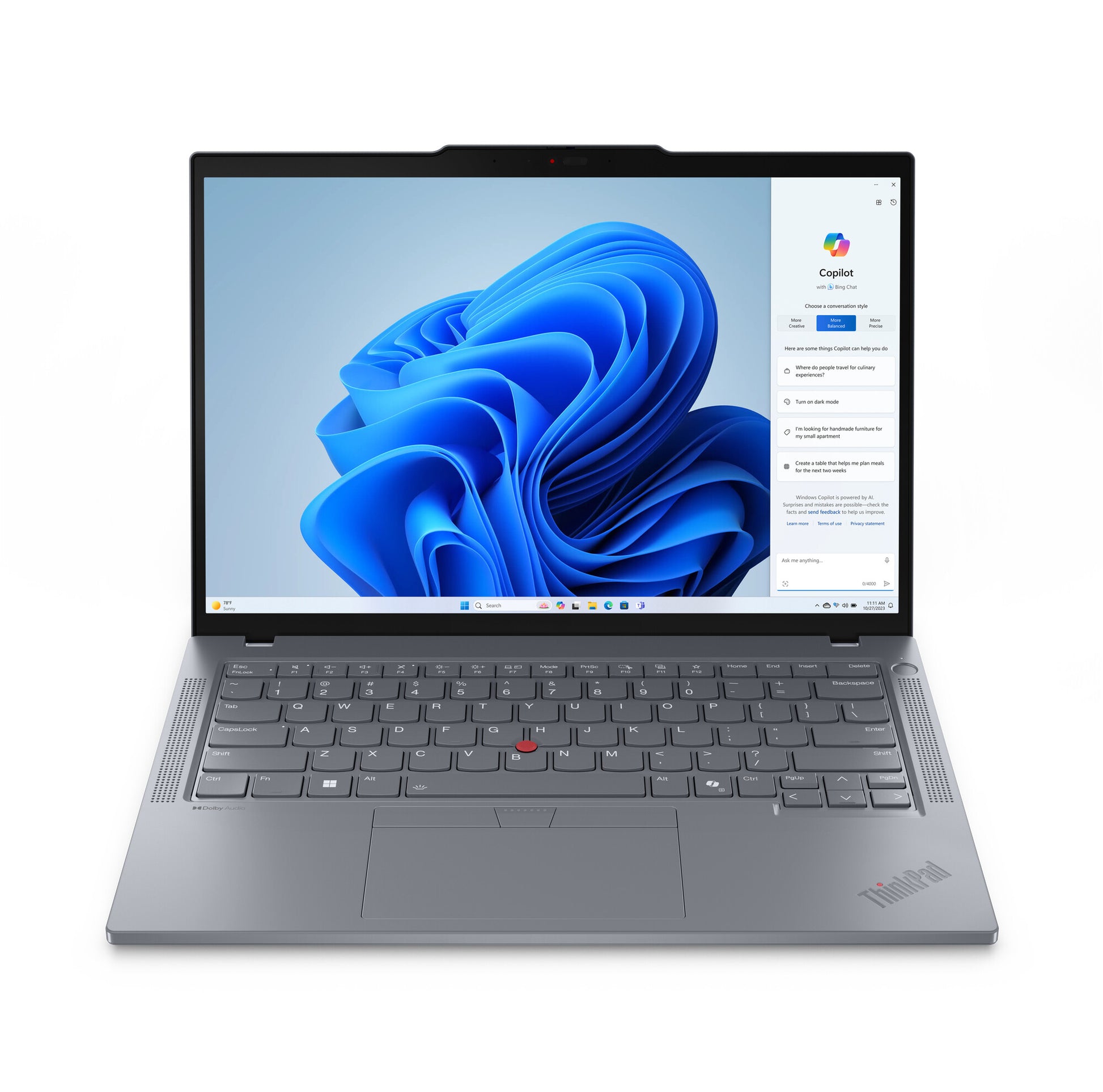

Our redesigned ThinkPad keyboard includes tactile markings for easy key recognition and an enlarged TrackPad (120mm / 4.72ʺ) for greater control. A double tap on the TrackPoint activates a Quick Menu for customizable settings. And the Communications Bar atop the screen boasts a 5MP camera and noise-canceling mics for a sharper audio-visual focus.
Intuitive Features, Impactful Design
Stay productive all day with the T14 Gen 5 laptop, which seamlessly adapts to your workflow by adjusting battery usage. Its advanced thermal design features a dual-fan system with rear air vents for superior cooling. Plus, it's durability-tested to MIL-STD-810H specifications and promotes energy efficiency with an ENERGY STAR® 8.0 certification.
Power to You With DIY Ease
The ThinkPad T14 Gen 5 laptop offers long-lasting durability and allows for easy self-repairs with its customer replaceable units (CRU) — requiring no tech expertise. Its remarkable do-it-yourself capabilities are highlighted by a high 9.3/10 rating on the iFixit Repairability Scale to ensure effortless upgrades and component replacements.
State-of-the-art Security Solutions
Enjoy peace of mind with assured data security on the T14 Gen 5 laptop. With ThinkShield, our advanced security suite, your data is encrypted by a discrete Trusted Platform Module (dTPM). Optional biometrics provide extra security, from fingerprint reader to facial recognition login, while a webcam privacy shutter maintains visual privacy when needed.
| Design |
|---|
| Housing material |
Aluminium, Carbon fibre, Polycarbonate (PC) |
| Form factor |
Clamshell |
| Product colour |
Grey |
| Product type |
Laptop |
| Display |
|---|
| Contrast ratio (typical) |
800:1 |
| Maximum refresh rate |
60 Hz |
| RGB colour space |
NTSC |
| Colour gamut |
45% |
| Display brightness |
400 cd/m² |
| Anti-glare screen |
Yes |
| LED backlight |
Yes |
| Native aspect ratio |
16:10 |
| Panel type |
IPS |
| HD type |
WUXGA |
| Touchscreen |
Yes |
| Display resolution |
1920 x 1200 pixels |
| Display diagonal |
35.6 cm (14") |
| Processor |
|---|
| Processor cache type |
L3 |
| Processor cache |
16 MB |
| Processor frequency |
3.2 GHz |
| Processor boost frequency |
4.9 GHz |
| Processor threads |
12 |
| Processor cores |
6 |
| Processor model |
8540U |
| Processor generation |
AMD Ryzen PRO 8000 Series |
| Processor family |
AMD Ryzen™ 5 PRO |
| Processor manufacturer |
AMD |
| Memory |
|---|
| Memory channels |
Dual-channel |
| Maximum internal memory |
64 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
1 x 16 GB |
| Memory clock speed |
5600 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
16 GB |
| Storage |
|---|
| Card reader integrated |
No |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
|---|
| On-board graphics card model |
AMD Radeon 740M |
| On-board graphics card family |
AMD Radeon |
| On-board GPU manufacturer |
AMD |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
|---|
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Speaker power |
2 W |
| Number of built-in speakers |
2 |
| Audio system |
Dolby Audio |
| Audio chip |
Realtek ALC3287 |
| Camera |
|---|
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Infrared (IR) camera |
Yes |
| Front camera resolution (numeric) |
5 MP |
| Front camera |
Yes |
| Network |
|---|
| WWAN |
Not installed |
| Near Field Communication (NFC) |
No |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| WLAN controller model |
Qualcomm NFA725A |
| WLAN controller manufacturer |
Qualcomm |
| Antenna type |
2x2 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network connection |
No |

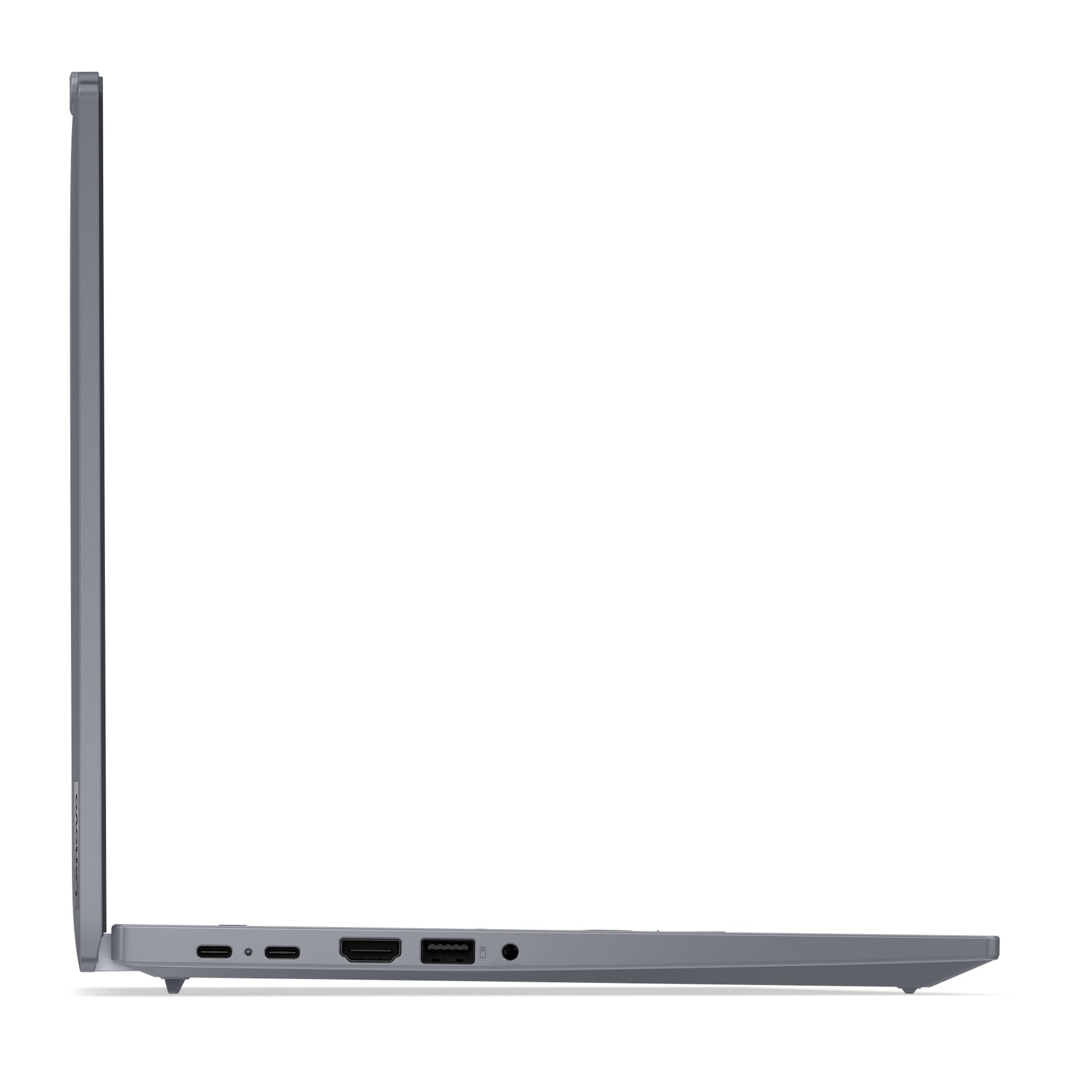

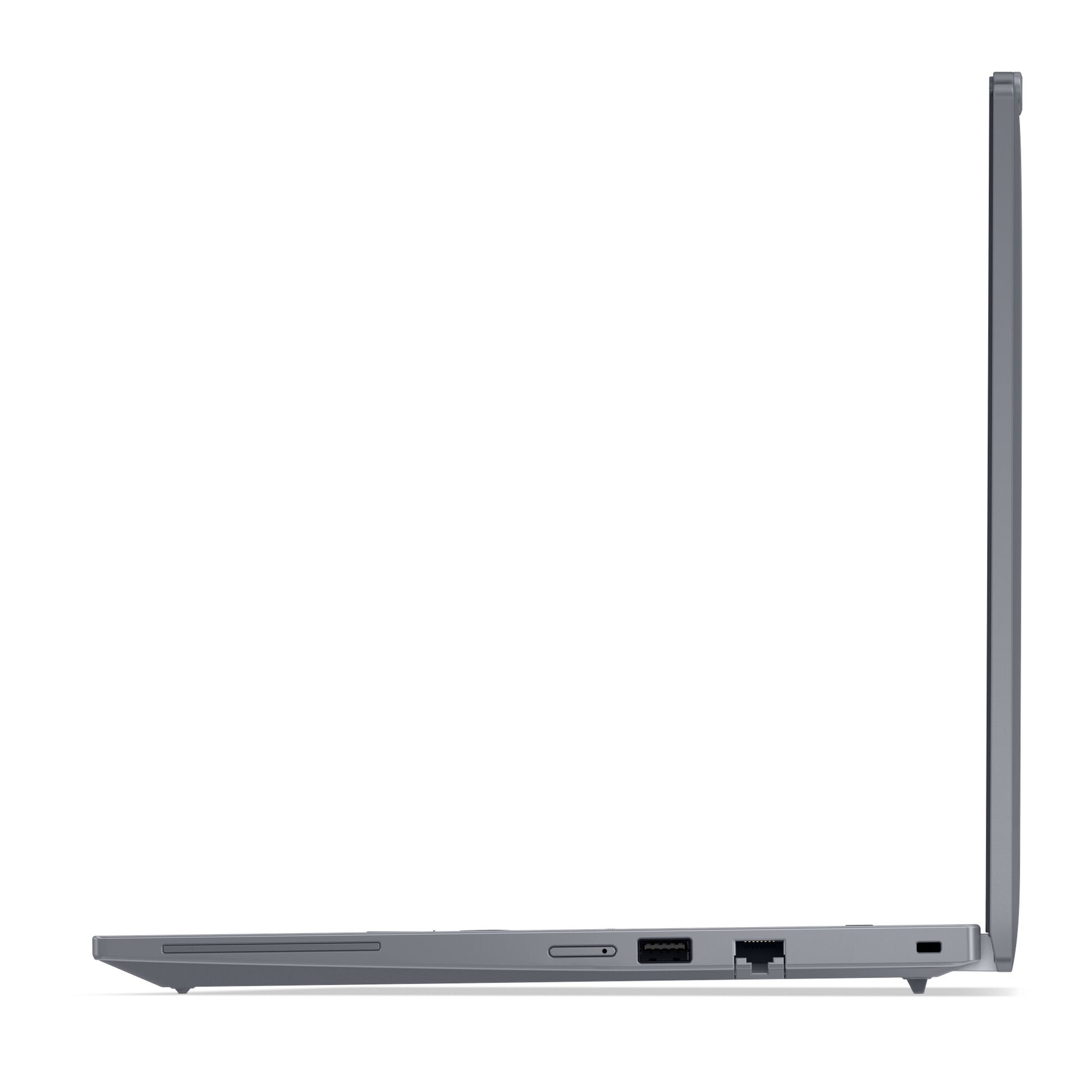

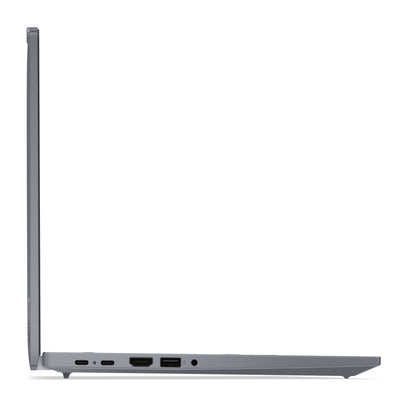

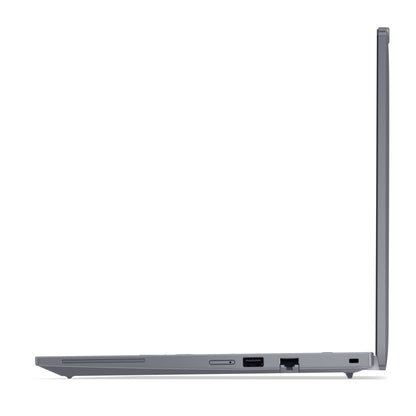

| Ports & interfaces |
|---|
| USB Sleep-and-Charge ports |
1 |
| USB Sleep-and-Charge |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Performance |
|---|
| Motherboard chipset |
AMD SoC |
| Keyboard |
|---|
| Keyboard language |
English |
| Spill-resistant keyboard |
Yes |
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Pointing device |
ThinkPad UltraNav |
| Software |
|---|
| Operating system architecture |
64-bit |
| Operating system language |
English |
| Operating system installed |
Windows 11 Pro |
| Battery |
|---|
| Fast charging |
Yes |
| Battery capacity |
52.5 Wh |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
|---|
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50/60 Hz |
| AC adapter power |
65 W |
| Security |
|---|
| Password protection type |
BIOS, Power on, SSD, Supervisor |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Windows Hello |
Yes |
| Fingerprint reader |
Yes |
| Smart card reader |
No |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Operational conditions |
|---|
| Maximum shipping altitude |
3048 m |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
8 - 95% |
| Storage temperature (T-T) |
5 - 43 °C |
| Operating temperature (T-T) |
5 - 35 °C |
| Certificates |
|---|
| Certification |
ENERGY STAR® 8.0EPEAT™ Gold RegisteredErP Lot 6/26RoHS compliantTCO Certified 9.0MIL-STD-810H military test passed |
| Weight & dimensions |
|---|
| Height |
17.7 mm |
| Depth |
223.7 mm |
| Width |
315.9 mm |
| Weight |
1.43 kg |
| General |
|---|
| Product family |
ThinkPad |
| Product series |
T |
| Packaging content |
|---|
| AC adapter included |
Yes |
