- 240Hz & 1ms GTG* with DP 2.1 Input
- 1000R Curved Screen
- AMD FreeSync™ Premium Pro
- Quantum Matrix Technology
- VESA DisplayHDR 1000

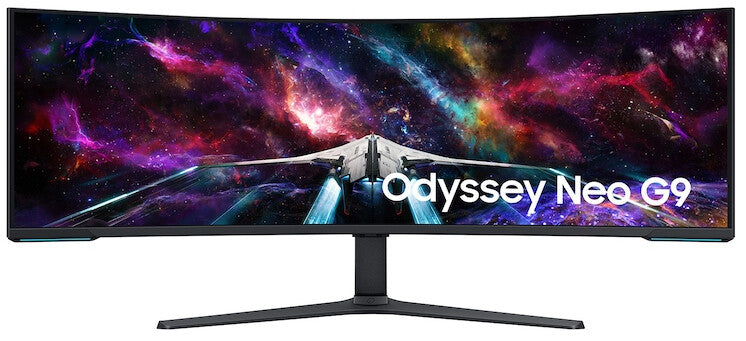

57", Dual 4K UHD 7680 x 2160, 240Hz, 1ms(GtG), VA, 1000R, 32:9, 420 cd/㎡, Mini LED, Mega DCR, 2500 : 1, DisplayHDR 1000, Freesync, USB-Hub, Core sync, Black/White
Top 3 Features
The World's First Dual UHD Monitor
Live inside games that feel more real than the outside world. The world's first dual UHD monitor wraps around you with a super-wide 57" screen and 1000R curvature.
Spellbinding Visual Quality
The power of Quantum Mini-LED and HDR 1000 brings astounding levels of visual accuracy, definition, and brightness, so even the smallest details feel real.
Electrifying Speed
One misstep can be the difference between victory and defeat. With a 240Hz refresh rate, 1ms(GtG)* and FreeSync™ Premium Pro, prepare to win.

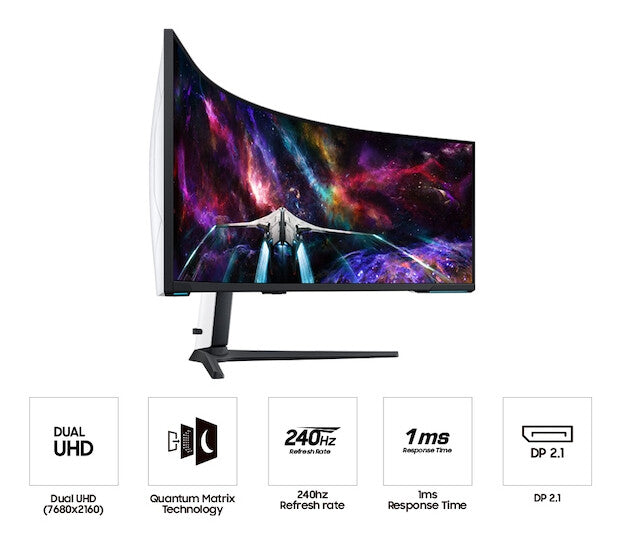

A groundbreaking new visual experience
The World’s First Dual UHD Monitor; 57” screen size
Gaming worlds feel more real. The 57" DUHD resolution brings you a display as wide as two UHD monitors with incredibly detailed, pin-sharp images and a wide field of view. See more of the action, and play with conviction, knowing you won't miss a thing.
Sharper visuals with densely packed pixels
140 PPI
Don’t sacrifice detail, even with a larger screen. More pixels per inch gives you the level of clarity you need to pick up on the small, but significant, details across the Odyssey Neo G9 screen.
New levels of speed to give you the edge
240Hz & 1ms GTG* with DP 2.1 Input
Conquer every enemy with extreme speed. A 240Hz refresh rate reduces lag for ultra-smooth action. Less blur, a 1ms GTG* response time, and minimized ghosting enables you to game with precision. All new DisplayPort 2.1 support provides the same blazing performance in DUHD with variable refresh rates.
Wrap yourself in adventure
1000R Curved Screen
Experience the next level of heart-pounding gaming with even more intensity as the vivid scenes wrap around you.
Immerse yourself in smooth action without disruption
AMD FreeSync™ Premium Pro
Hyper-fast action made seamless. Complex and fast-moving game scenes are projected smoothly and stutter-free with AMD FreeSync™ Premium Pro to power your competitive edge.
The pinnacle of video visuals
Quantum Matrix Technology
An unrivaled visual experience. Revolutionary Quantum Matrix Technology with Quantum Mini LEDs creates controlled brightness and improved contrast for refined definition. 2,392 local dimming zones combine with the highest 12-bit black levels to create unmatched picture quality.
Catch the detail, defeat your enemies
VESA DisplayHDR 1000
See every detail in all its glory. From gloomy shadows to sun-scorched scenes, 1,000 nit peak brightness and 1,000,000:1 contrast ratio enable enhanced color expression and depth. Spot enemies hiding in dark corners, giving you the competitive edge needed for a win.
Your station your way

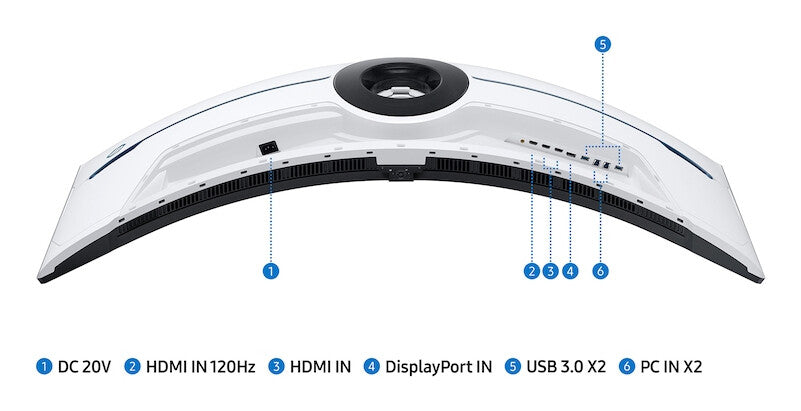

Versatile Connectivity
Tap into a multitude of input options. DisplayPort2.1, HDMI 2.1 and USB Hub let you hook up to your favorite devices to easily and conveniently elevate your game with no mess.
Picture-by-Picture
Game, watch, chat—all at the same time. With PBP, view video from two sources simultaneously in their native resolution. Use PIP to resize the second source on up to 25% of the screen.
Auto Source Switch+
With Auto Source Switch+, your monitor detects when connected devices are turned on and instantly switches to the new source signal. This helps you get to your game action faster without flipping through multiple input sources.
Designed to magnify your immersion
CoreSync & Core Lighting+
Enhance your screen surroundings. With CoreSync technology, the game's on-screen colors are projected into your real world to further immerse you into the setting. New Core Lighting+ adds amazing color to your set-up for an instant vibe shift.
Extend winning streaks in comfort
Ergonomic Stand
Find your winning position. Swivel, tilt, and adjust the height until you're set up for victory. Fully compatible with VESA-standard monitor arms, the screen can be moved effortlessly to your ideal position.
| Display |
|---|
| Display diagonal |
144.8 cm (57") |
| Display resolution |
7680 x 2160 pixels |
| Native aspect ratio |
32:9 |
| Display technology |
LCD |
| Touchscreen |
No |
| HD type |
Dual UHD |
| Panel type |
VA |
| LED backlight |
Yes |
| Backlight type |
Mini LED |
| Display brightness (typical) |
420 cd/m² |
| Display brightness (min) |
350 cd/m² |
| Response time |
1 ms |
| Response time measurement type |
GTG (Gray to Gray) |
| Anti-glare screen |
Yes |
| Screen shape |
Curved |
| Screen curvature rating |
1000R |
| Contrast ratio (typical) |
2500:1 |
| Dynamic contrast ratio marketing name |
Mega DCR |
| Maximum refresh rate |
240 Hz |
| Refresh rate optimizor |
Yes |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
1 billion colours |
| Pixel density |
140 ppi |
| Viewable size, horizontal |
139.5 cm |
| Viewable size, vertical |
39.2 cm |
| High Dynamic Range (HDR) supported |
Yes |
| High Dynamic Range (HDR) technology |
High Dynamic Range (HDR) 1000, High Dynamic Range 10+ Gaming (HDR10 Plus Gaming) |
| Colour gamut standard |
DCI-P3 |
| DCI-P3 coverage |
95% |
| Quantum dot color technology |
Yes |
| Performance |
|---|
| NVIDIA G-SYNC |
No |
| AMD FreeSync |
Yes |
| AMD FreeSync type |
FreeSync Premium Pro |
| Flicker-free technology |
Yes |
| Game features |
Super Arena Gaming UX |
| Windows operating systems supported |
Windows 10 |
| Multimedia |
|---|
| Built-in speaker(s) |
No |
| Built-in camera |
No |
| Built-in microphone |
No |
| Design |
|---|
| Market positioning |
Gaming |
| Product colour |
Black, White |
| Frameless design |
No |
| Front bezel colour |
Black |
| Detachable stand |
Yes |
| Illuminated stand |
No |
| Feet colour |
Black |
| Ports & interfaces |
|---|
| Built-in USB hub |
Yes |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type |
USB Type-B |
| Number of upstream ports |
2 |
| Number of downstream ports |
2 |
| Number of USB Type-B upstream ports quantity |
2 |
| USB Type-A downstream ports quantity |
2 |
| HDMI |
Yes |
| HDMI ports quantity |
3 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
1 |
| DisplayPort version |
2.1 |
| Headphone out |
Yes |
| Built-in KVM switch |
Yes |
| HDCP |
Yes |
| HDCP version |
2.2 |
| AC (power) in |
Yes |
| Network |
|---|
| Wi-Fi |
No |
| Bluetooth |
No |
| Ergonomics |
|---|
| VESA mounting |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Wall mountable |
Yes |
| Height adjustment |
Yes |
| Adjustable height (max) |
12 cm |
| Swivelling |
Yes |
| Swivel angle range |
-15 - 15° |
| Tilt adjustment |
Yes |
| Tilt angle range |
-3 - 10° |
| Picture-in-Picture |
Yes |
| Plug and Play |
Yes |
| Power |
|---|
| Energy efficiency class (SDR) |
Not available |
| Energy efficiency class (HDR) |
Not available |
| Power consumption (max) |
300 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| AC adapter output voltage |
20 V |
| Power supply type |
Internal |
| Operational conditions |
|---|
| Operating temperature (T-T) |
10 - 40 °C |
| Operating relative humidity (H-H) |
10 - 80% |

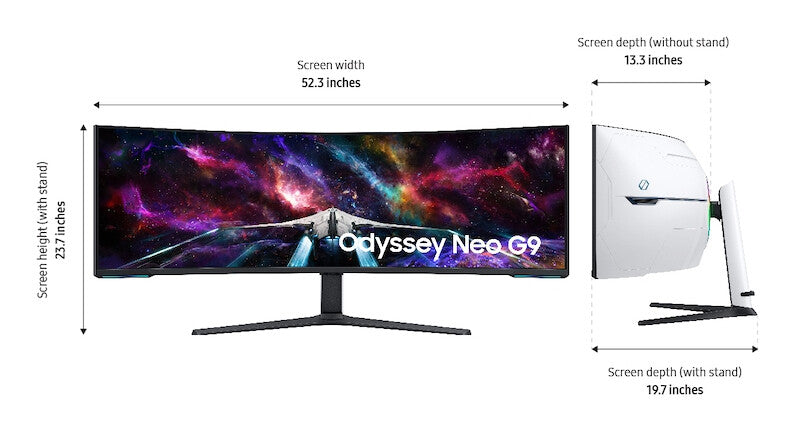

| Weight & dimensions |
|---|
| Width (with stand) |
1328 mm |
| Depth (with stand) |
500 mm |
| Height (with stand) |
602 mm |
| Weight (with stand) |
19 kg |
| Width (without stand) |
1328 mm |
| Depth (without stand) |
338 mm |
| Height (without stand) |
429 mm |
| Weight (without stand) |
15.4 kg |
| Packaging data |
|---|
| Stand type |
HAS stand |
| Package width |
1455 mm |
| Package depth |
556 mm |
| Package height |
419 mm |
| Package weight |
26.8 kg |
| Packaging content |
|---|
| Stand included |
Yes |
| Cables included |
DisplayPort, HDMI, Power |
| General |
|---|
| Product series |
Neo G9 |
| Product family |
Odyssey |
| Other features |
|---|
| Brand specific technologies |
Black Equalizer, Core Sync |
| Local dimming |
Yes |
| Picture-by-Picture (PbP) |
Yes |
| Auto source switch+ |
Yes |
| Adaptive picture |
Yes |
| Video colour modes |
Custom, Eco, Entertain, Game, Graphic, Original, Sports, Standard |
| Samsung Eye Saver Mode |
Yes |
| Virtual AIM point |
Yes |
| Off Timer Plus |
Yes |
| Factory tunning |
Yes |
| Image size |
Yes |
